Woodworking Machinery

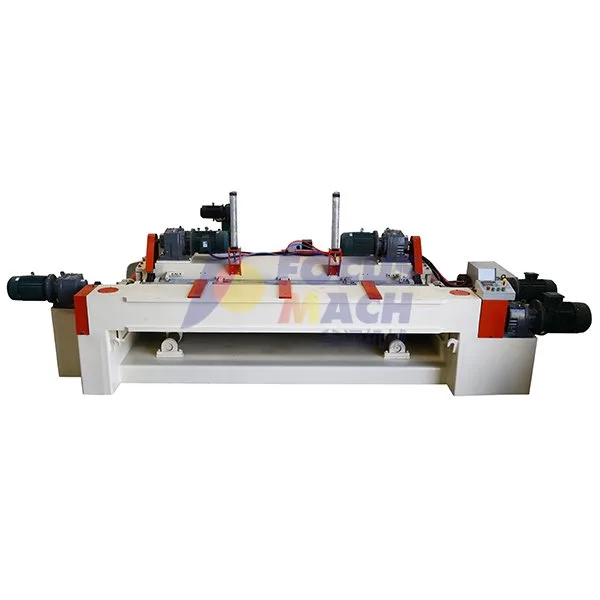

Spindleless veneer lathe with four pressure bars
Time: 2026-10-09 13:42
Description:
Time: 2026-10-09 13:42
Description:
Jasonqiao@sdfocusmachinery.comProduct Details
| Technical specifications: |
| Machine name | Spindleless veneer peeling machine (4-roller type) |
| Machine model | BXQ1815/500A |
| Maximum. Working diameter | Ø500mm |
| Min. working diameter | Ø22mm |
| Maximum. Working length | 1400mm |
| Veneer thickness range | 0.8 - 4.0mm |
| Roller diameter | Ø125mm |
| Single roller motor power | 5.5 kW |
| Motor power with two rollers | 7.5 kW |
| Feed motor power | 7.5 kW |
| Rotary guillotine engine | 1.5 kW |
| Veneer Conveyor Motor | 1.5 kW |
| Total motor power | |
| Gearbox type | Hardened helical gear surface (R87) |
| Working speed | 60 m/min |
| Overall dimensions of the machine | 3200 x 1800 x 1500 mm |
| Machine net weight | 6200 kg |
| Note | 1. With automatic pneumatic oiler. 2. With automatic lubrication pump system. 3. Automatic emergency stop safety device. |
