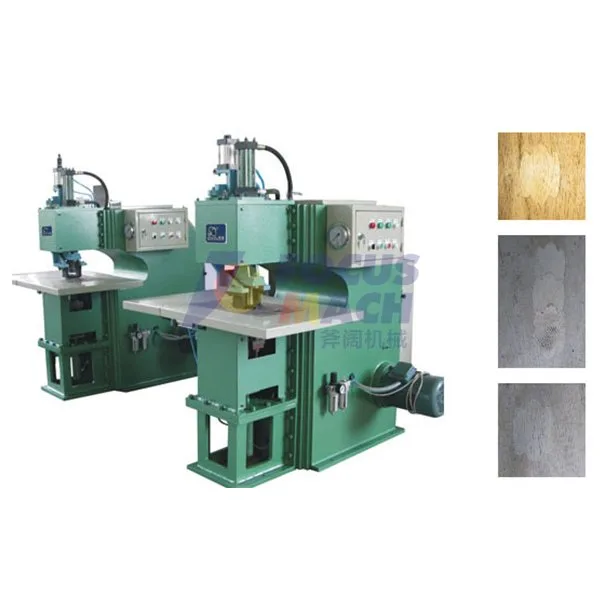

Veneer repair machine
This machine is used to repair natural edge defects in individual veneer sheets during plywood production; it allows for quick switching between two different repair sizes.
Individual sheets can be repaired efficiently, quickly, and seamlessly.
This practical new type of machine can reduce production costs and improve the quality of the veneer.
Technical specifications:
| Machine name | Rod repair machine |
| Platen thickness | 0.8–3 mm |
| Single platen dimensions | 130×220 / 110×105 mm |
| Repair speed | Approx. 2 seconds |
| Power | 5.5 kW |
| Compressed air | 4–6 kg/cm² |
| Normal oil pressure | 16 MPa |
| Cylinder diameter | Φ80 mm |
| Overall dimensions (length x width x height) | 1650L × 1060W × 1750H (mm) |
| Approximate weight | 1100 kg |
