Description:
Jasonqiao@sdfocusmachinery.comProduct Details

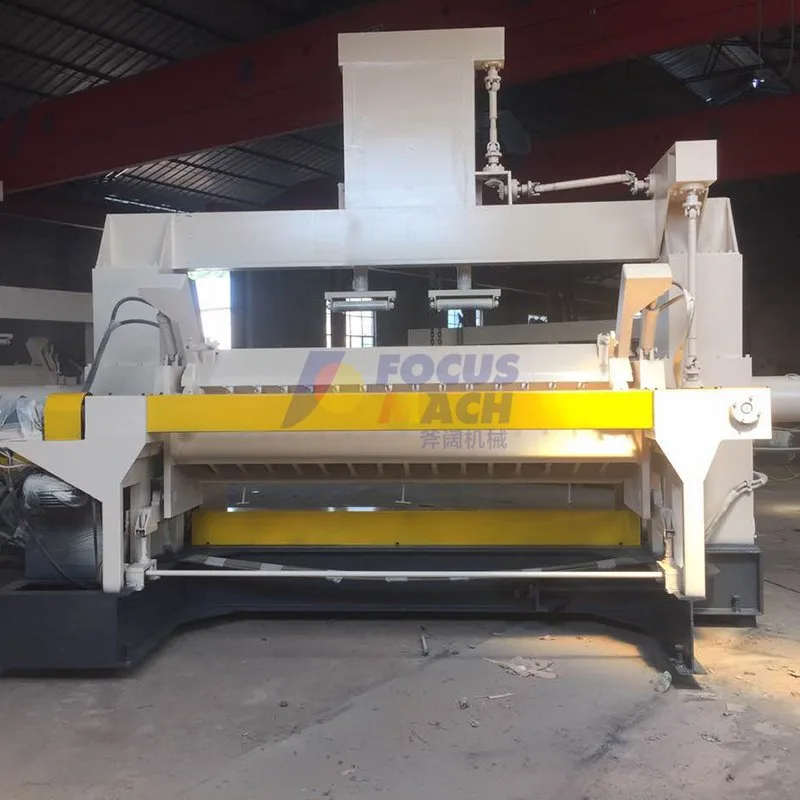

8ft / 2700mm Spindle Veneer Peeling Rotary Line
Face veneer is an essential raw material for numerous wood panel products, including plywood, LVL, and others. Face veneer is mainly produced from high-value, century-old timber species. Therefore, selecting a high-quality spindle rotary peeling machine is the priority to obtain premium face veneer.
The main working process of the production line: Raw log conveyor → Hydraulic log rounding & debarker → Hydraulic spindle rotary veneer peeling machine → CNC veneer guillotine cutter → Automatic veneer stacker
Technical Specifications
| Item | Details |
|---|---|
| Machine Name | 8ft Mechanical Spindle Log Rotary Peeling Machine |
| Model | BXQ1727/17JX |
| Max. Working Diameter | Ø1700mm |
| Max. Working Length | 2600mm |
| Min. Working Diameter | Ø120mm |
| Veneer Thickness Range | 0.18 - 3.6mm |
| Peeling Knife Size | 2700 x 140 x 13mm |
| Main Spindle Rotation Speed | 87rpm/min |
| Machine Motor Power | 40Kw |
| Overall Machine Dimension | 5500(L) x 2300(W) x 2500mm(H) |
| Net Weight | 6800Kgs |
