Woodworking Machinery

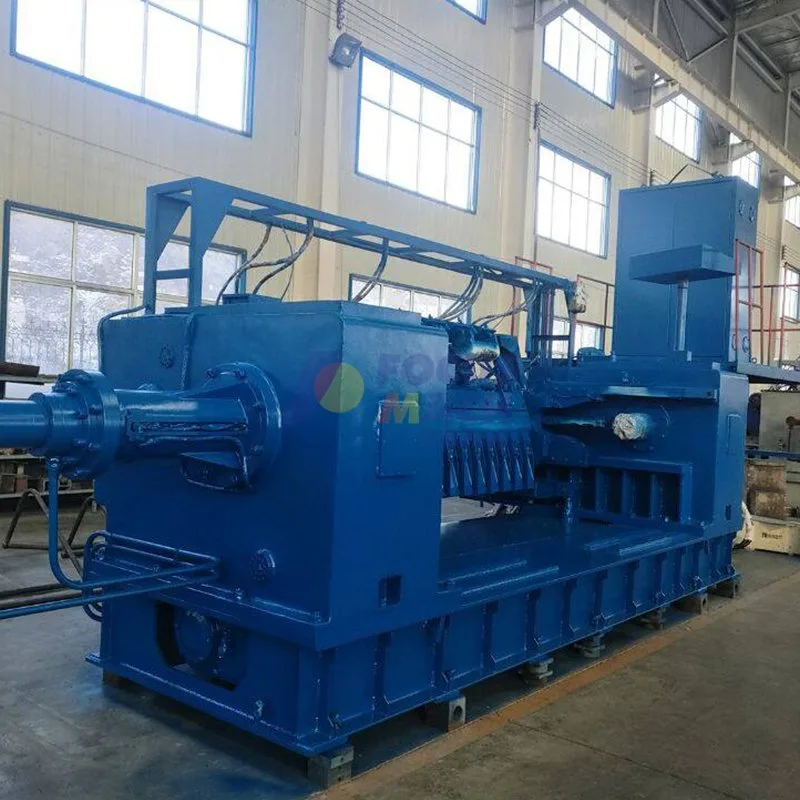

Hydraulic rotary peeling machine with one chuck and
Time: 2026-10-15 15:08
Description:
Time: 2026-10-15 15:08
Description:
Jasonqiao@sdfocusmachinery.comProduct Details
| Item | BQ1226/8F1 | BQ1226/8E1 | BQ1215/8A1 |
|---|---|---|---|
| Model | BQ1226/8F1 | BQ1226/8E1 | BQ1215/8A1 |
| Max. Cutting Diameter | φ170–φ800mm | φ170–φ800mm | φ170–φ800mm |
| Max. Cutting Length | 2150–2700mm | 2150–2700mm | 900–1450mm |
| Veneer Thickness | 0.35–3.9mm | 0.35–3.9mm | 0.35–3.9mm |
| Chuck Diameter | φ130mm | φ100mm | φ85(φ100)mm |
| Rotation Speed | 0–160rpm | 0–160rpm | 0–200rpm |
| Carriage Moving Speed | 1.8m/min | 1.8m/min | 1.8m/min |
| Total Motor Power | 90.25kw | 90.25kw | 58.35kw |
| Overall Dimension | 8340×1750×2400mm | 8340×1750×2400mm | 6800×1750×2400mm |
| Weight | 15000kg | 15000kg | 13000kg |
