Woodworking Machinery
Rotary veneer peeling lathe with a horizontal hydraulic chuck
Time: 2026-10-15 15:12
Description:
Time: 2026-10-15 15:12
Description:
Jasonqiao@sdfocusmachinery.comProduct Details

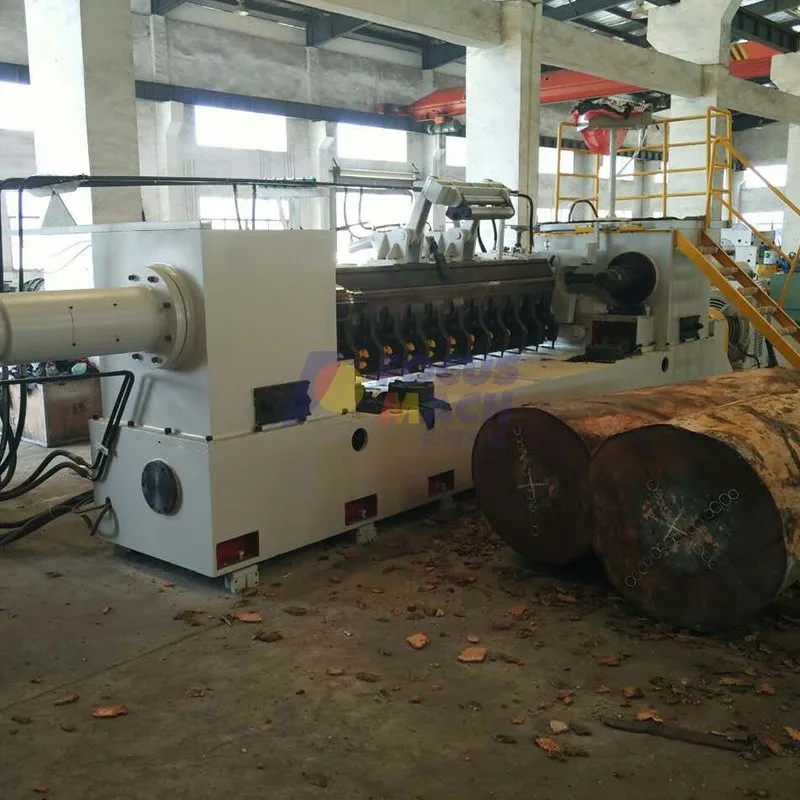

Hydraulic Large Diameter Double Chuck Thick Core 4ft Spindle Veneer Peeling Machine
- The spindle veneer peeling lathe is mainly used for peeling precious veneer and large-diameter logs, such as okoume, birch, beech, etc.
- The minimum peeling thickness can reach 0.1 mm, with a maximum log peeling diameter of 1500 mm. Its fully automatic peeling line and precise veneer thickness control are highly recognized by customers.
- It adopts Taiwan Delta automatic control system, and all motors are Huali brand. The thickness adjustment can be controlled by CNC and reducer.
- Reliable quality guaranteed. Our machines have been exported to Russia, Gabon, India, Europe and over 30 countries worldwide.
Technical Specifications
| Item | Vertical Type | Horizontal Type |
|---|---|---|
| Max. Log Diameter | 1500mm or customizable | 900mm |
| Veneer Thickness | 0.1–2.6mm | 0.1–2.6mm |
| Peeling Speed | 0–80m/min | 0–80m/min |
| Total Motor Power | 40.45KW | 40.45KW |
| Chuck Type | Double Mechanical Chuck | Double Mechanical Chuck |
| Total Weight | 8000KG | 7900KG |
| Overall Dimension | 6500mm2350mm2600mm | 6500mm2350mm2600mm |
