Woodworking Machinery

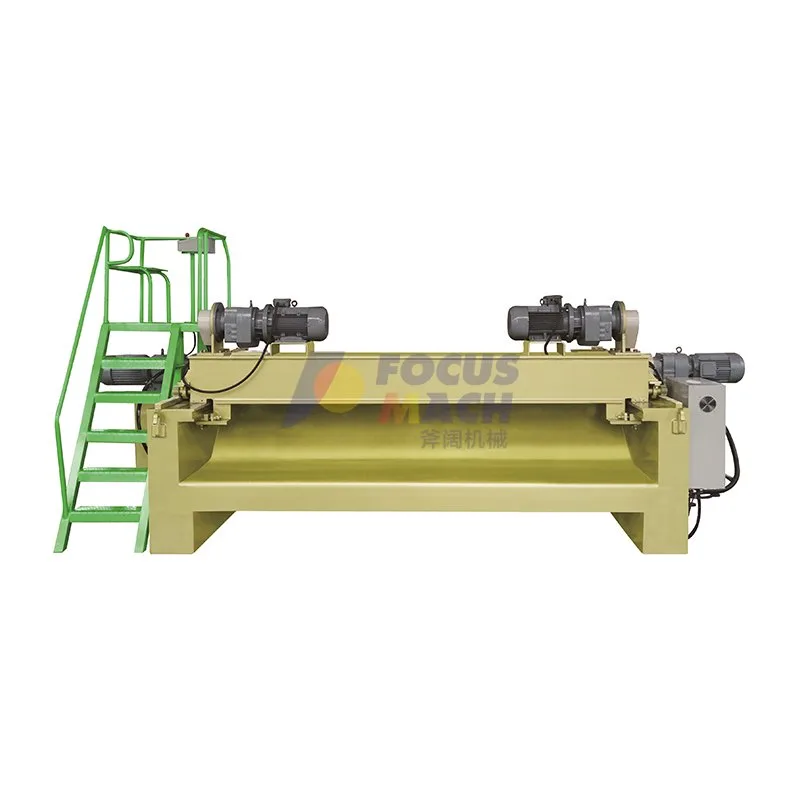

4-foot rounding-up debarking machine
Time: 2026-10-15 15:13
Description:
Time: 2026-10-15 15:13
Description:
Jasonqiao@sdfocusmachinery.comProduct Details
Technical Specifications
| Item | Details |
|---|---|
| Model | 1400 mm |
| Log Processing Size | 500 * 1400 mm |
| Rotary Knife Specification | 1500 * 180 *16 mm |
| Roller Diameter | 150 mm |
| Linear Speed | 50m/min |
| Reference Output | 30 m³/day |
| Hydraulic System Power | 7.5 kW |
| Drive Roller Power | 5.5 kW * 2 or 7.5 kW * 2 |
| Press Roller Power | 5.5 kW * 2 or 7.5 kW * 2 |
| Feed Cylinder Diameter | 80 mm * 2 |
| Overall Dimension | 4000 * 2200 * 1800 mm |
| Machine Weight | 4000 kgs |
Advantages
- This heavy-duty veneer peeling machine weighs up to 5000 kg to guarantee stable veneer quality. Suitable for eucalyptus, keruing, mango, rubber wood and other hardwood species.
- Easy to adjust veneer thickness and other parameters.
- Peeling speed reaches 40–50 m/min with variable speed control, delivering high production efficiency.
- One log debarker can serve two or three veneer peeling machines.
