Woodworking Machinery

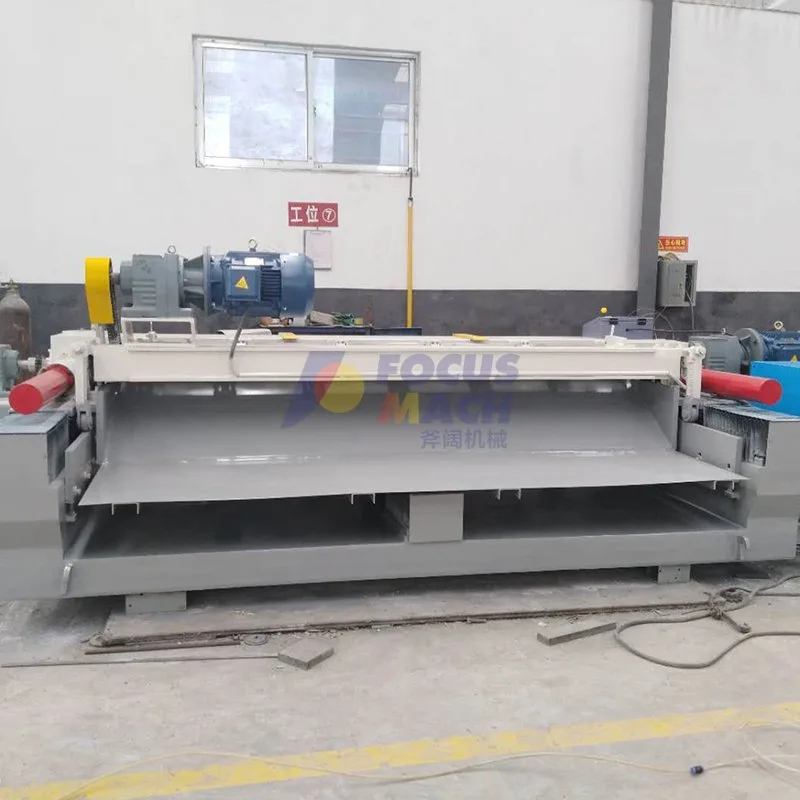

8-foot NC spindleless veneer peeling machine
Time: 2026-10-15 15:18
Description:
Time: 2026-10-15 15:18
Description:
Jasonqiao@sdfocusmachinery.comProduct Details
| Item | Details |
|---|---|
| Model | XRD2600-HP |
| Max Peeling Length | 2600mm |
| Max Cutting Diameter | 500mm |
| Veneer Thickness Range | 0.35mm - 5mm |
| Peeling Knife Size | 270018016mm |
| Cutting Knife Size | 270014012.7mm |
| Remaining Log Core Diameter | 25-32mm |
| Single Roller Diameter | 125mm |
| Double Roller Diameter | 125mm |
| Guide Screw Diameter | 90mm |
| Single Roller Power | 2*7.5kW |
| Double Roller Power | 2*11kW |
| Knife Gap Motor | 1.5kw (Servo Motor) |
| Knife Tilt Angle Motor | 1.5kw (Servo Motor) |
| Feed Motor | 15kW (Servo Motor) |
| Cutting Motor | 4kw (Servo Motor) |
| Hydraulic Station Power | 7.5kw |
| Conveyor Motor | 2.2kW |
| Working Speed | 40m - 80m/min (adjustable) |
| Machine Weight | 9000kgs |
| Overall Dimension | 560020001800mm |
