Woodworking Machinery
Veneer stitching machine
Time: 2026-10-15 15:21
Description:
Time: 2026-10-15 15:21
Description:
Jasonqiao@sdfocusmachinery.comProduct Details

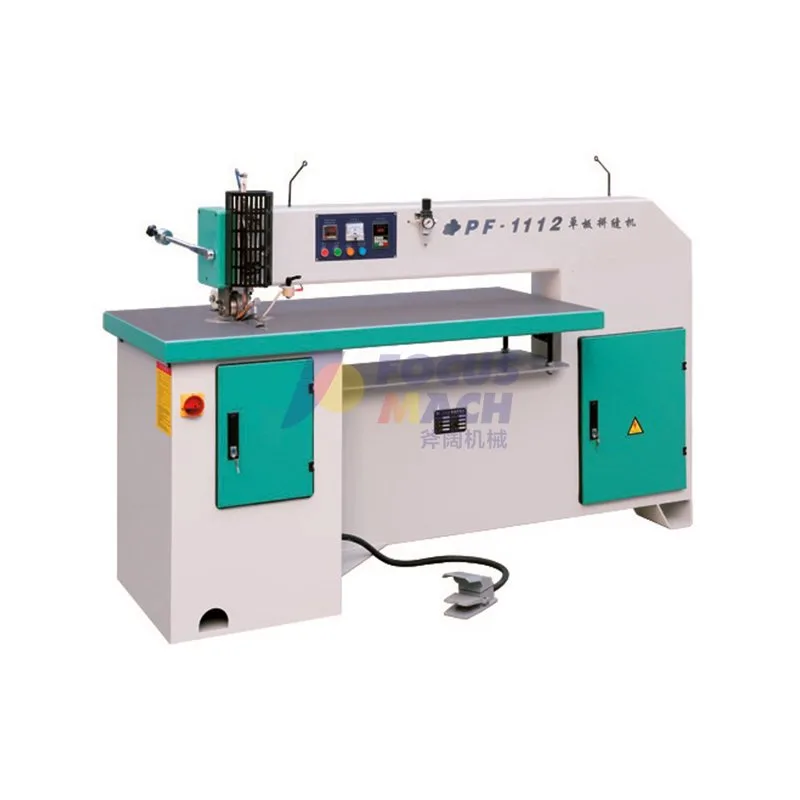

Woodworking Automatic Plywood Veneer Stitching Machine
This machine is mainly used to stitch small-size veneers into larger sheets by hot glue stitching. It features high stitching speed, excellent joint quality and controllable temperature. Suitable for dry veneer with thickness of 0.5–3 mm.
Details:
- Stitching speed is adjustable.
- Heating temperature range for the glue thread: 0–230°C.
- The machine adopts 5mm thick plate, stable and reliable performance.
- Built-in counter to record the quantity of stitched veneers.
Technical Specifications
| Item | MH1114 | MH1130 |
|---|---|---|
| Type | MH1114 | MH1130 |
| Infeed Depth | 1350mm | 1170mm |
| Veneer Processing Thickness | 0.3-3mm | 0.3-3mm |
| Stitching Speed | 10-50m/min | 10-50m/min |
| Worktable Height | 900mm | 900mm |
| Heating Power | 0.4 kw | 0.3kw |
| Main Motor Power | 0.75kw | 0.75kw |
| Air Pressure | 0.2-0.6Mpa | 0.2-0.6Mpa |
| Overall Dimension (mm) | 23006501300 | 21006501300 |
| Net Weight (kg) | 520kg | 520kg |
