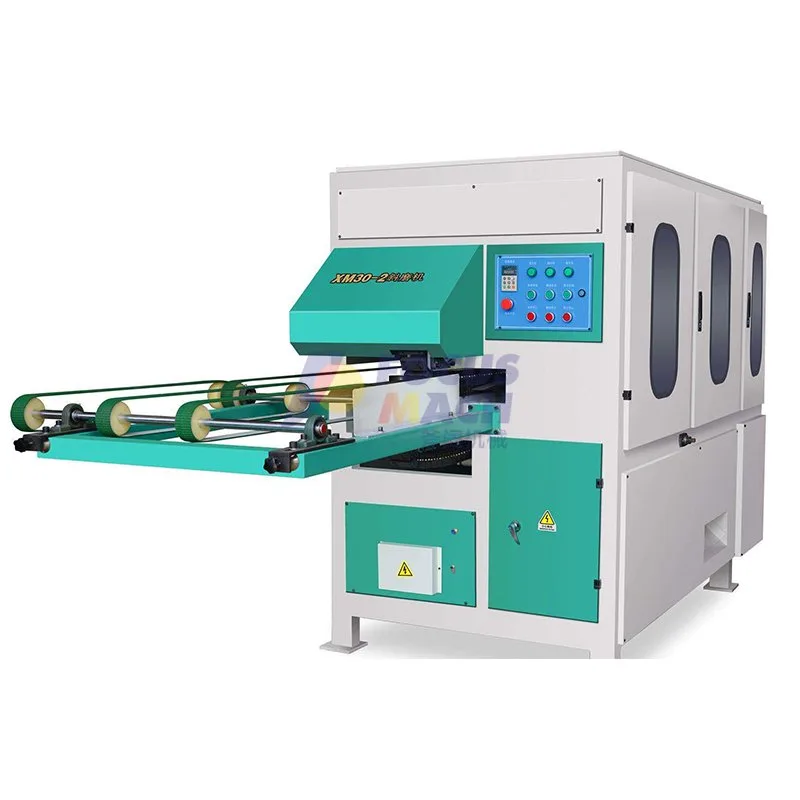

Veneer Edge Sanding Machine
The veneer sanding machine can trim veneers with torn edges into straight edges that will not deform during air drying, completely eliminating plywood quality defects.
The sanding system of this machine features a new and robust structure. It can rotate 180 degrees left and right, and is easy to install and maintain. Equipped with variable frequency variable speed motor and heavy-duty track chain drive for more stable operation. It uses durable high-quality sanding belt with high sanding precision. It can realize single-side sanding and automatic edge trimming. With dust collection equipment, it fully meets the requirements of veneer manufacturing plants.
Advantages of Veneer Sanding Machine
- Track-type pressing instead of belt-type pressing.
- Adjustable working width: 700–1300 mm.
- Suitable for all wood species, such as eucalyptus and various timbers.
- Inverter control.
- Sanding power is 3 kW, higher than the common 2 kW models in Linyi.
Technical Specifications
| Item | Double Head Veneer Sanding Machine | Single Head Veneer Sanding Machine |
|---|---|---|
| Feeding Speed | 3.57–35.7m/min | 3.57–35.7m/min |
| Sanding Thickness | 0.8–5.0mm | 0.8–5.0mm |
| Sanding Belt Line Speed | 2051m/min | 2051m/min |
| Sanding Width | 5–40mm | 5–40mm |
| Veneer Length | 700–1300mm | — |
| Sanding Belt Motor Power | 3kw*4 | 3kw*2 |
| Variable Frequency Motor Power | 4kw | 3kw |
| Total Power | 16.5kw | 9kw |
| Production Capacity | 800–1100 pcs/hour (4 veneers) | 800–1100 pcs/hour (4 veneers) |
| Total Weight | 2000kg | 1200kg |
