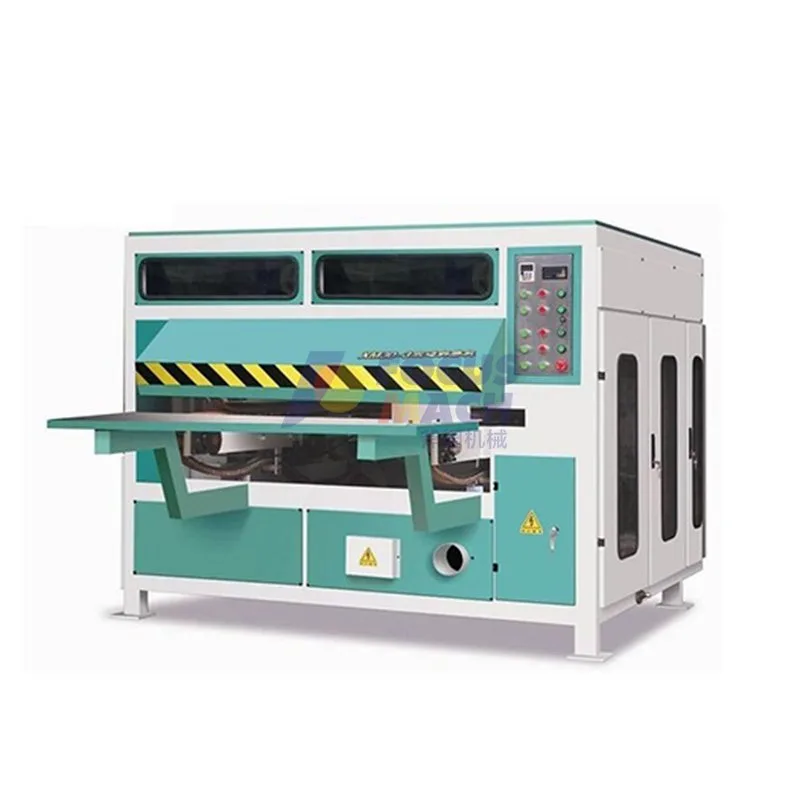

Double-sided Veneer Finger Scarf Jointer
The veneer scarfing machine can trim torn-edge veneers into straight edges that will not deform during air drying, completely eliminating plywood quality defects.
The sanding system of this machine adopts a new, sturdy structure. It can rotate 180 degrees left and right and is easy to install and maintain. It is equipped with a variable-frequency variable-speed motor and heavy-duty track chain drive for more stable operation. It uses durable high-quality sanding belts with high sanding precision. It supports single-sided sanding and automatic edge trimming. Fitted with dust collection equipment, it fully meets the production requirements of veneer factories.
Technical Specifications
| Item | Single-side Scarf Jointer | Double-side Scarf Jointer |
|---|---|---|
| Feeding Speed | 3.57–85m/min | 3.57–85m/min |
| Sanding Thickness | 0.8–5.0mm | 0.8–5.0mm |
| Sanding Width | ≤5–40mm | ≤5–40mm |
| Sanding Length | 600–2000mm | 600–2000mm |
| Feed Motor Power | 3 kW (variable frequency) | 5 kW (variable frequency) |
| Sanding Belt Motor Power | 3 kW × 2 | 3 kW × 2 |
| Overall Dimension | 4700×1400×1650mm | 4700×1400×1650mm |
| Machine Weight | 2000KGS | 2300KGS |
| Dust Collector Power | 5.5 kW | 5.5 kW |
