Jointer for continuous veneer
Time: 2026-10-15 17:25
Description:
Time: 2026-10-15 17:25
Description:
Jasonqiao@sdfocusmachinery.comProduct Details

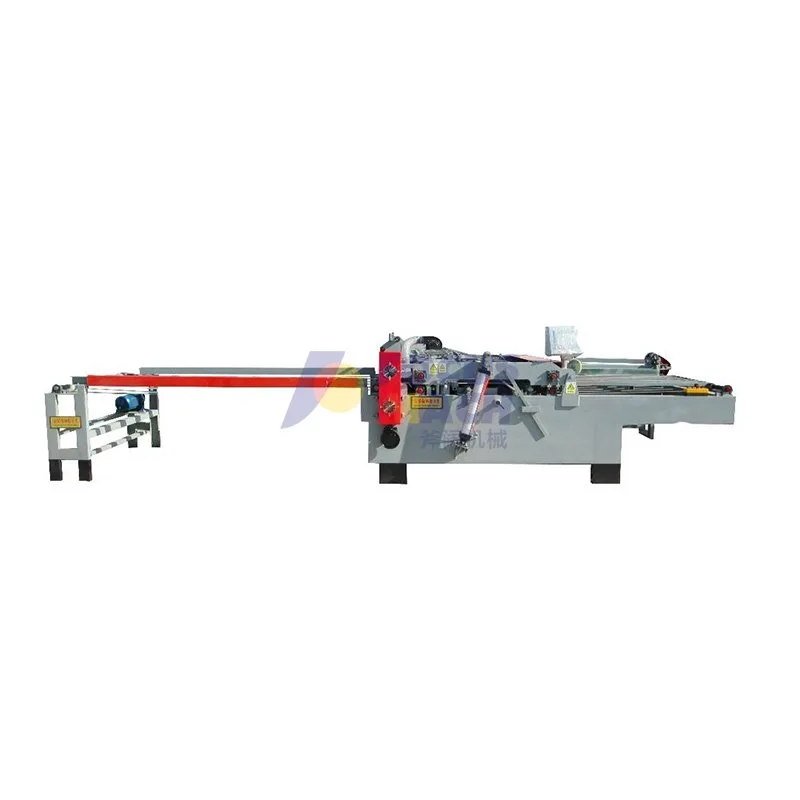

Veneer Core Jointer
The veneer core jointer is suitable for core veneer joining in plywood production lines. It can process veneers of various lengths, bonding them into a continuous sheet with high-strength thread and hot-melt adhesive. It simplifies the subsequent procedures of the plywood production line. The whole process can be operated by one worker to save time and improve efficiency.
Technical Specifications
| Item | Details |
|---|---|
| Working Veneer Width | 968–1270 mm (3–4ft) |
| Veneer Length | 1220–2560 mm (4ft, 5ft, 6ft, 7ft, 8ft) |
| Working Veneer Thickness | 1.2–6 mm |
| Knife Length | 1400 mm |
| Feeding Speed | 0–60m/min |
| Power Supply | 380V-50Hz 3phase |
| Conveyor Motor Power | 3kw (Servo Motor) |
| Front Cutting Motor Power | 3kw (Servo Motor) |
| Joining Motor Power | 3kw (Servo Motor) |
| Rear Cutter Motor Power | 3kw |
| Lifting Motor Power | 3kw |
| Conveyor to Stacker Motor | 1.5kw*3 |
| Stacking Motor Power | 1.5kw |
| Cooling Power | 1.5HP |
| Heating Power | 5.7kw |
| Main Inverter | 10kw Inverter |
| Occupied Floor Space | 2300×13000mm |
| Main Machine Dimension | 3800x2300x2200mm |
| Veneer Pushing System Dimension | 4000x1900x2300mm |
| Output | 200–350pcs/hour (4'x8') |
| Machine Weight | 6500KGS |
