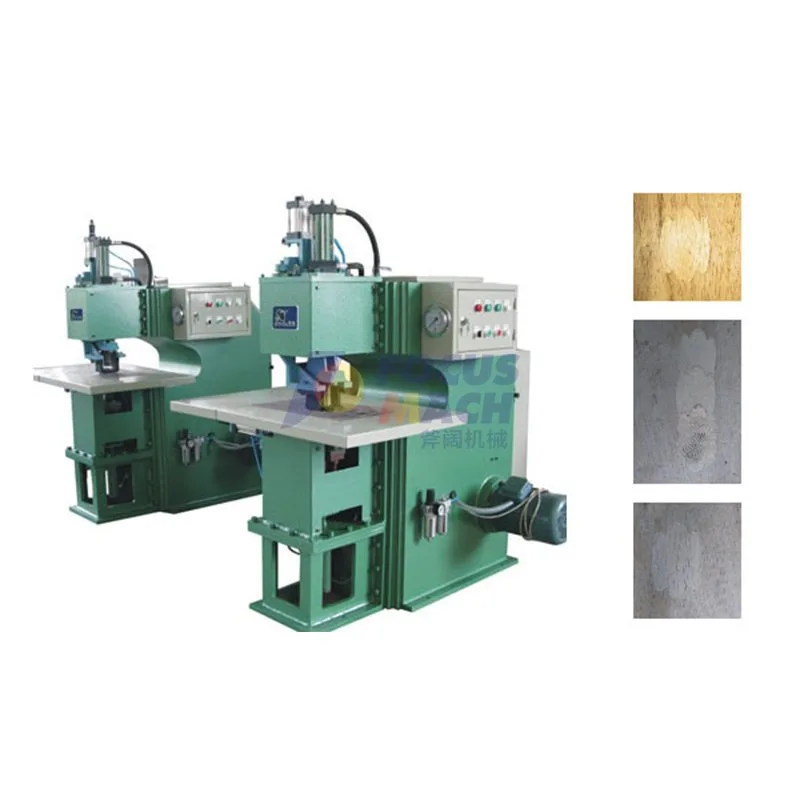

Pneumatic Veneer Patching Machine for Veneer Repair in Woodworking Equipment
Technical Specifications
| Item | WB100 | WB150 |
|---|---|---|
| Veneer Repair Thickness | 0.8~3mm | 0.8~3mm |
| Veneer Patching Size (Butterfly Type) | 70*100mm | 90*100mm |
| Infeed Depth | 830mm | 830mm |
| Patching Speed | 2sec/patch | 2sec/patch |
| Motor Power | 5.5kw | 5.5kw |
| Compressed Air | 4~6kg/cm² | 4~6kg/cm² |
| Normal Oil Pressure | 16Mpa | 16Mpa |
| Cylinder Diameter | Φ80 mm | Φ80 mm |
| Overall Dimension | 181511881750mm | 181511881750mm |
| Net Weight | 1200kg | 1200kg |
Description
Specifically, in wood-based plywood production, defective veneer sheets with natural imperfections need repairing. For a long time, plywood manufacturers in China mainly relied on manual patching, or simple knife die manual repair. Workers had to separate mould blocks and manually fill defects with paper tape or hot-melt threads. This method consumes lots of consumables and labor hours, and the repair quality greatly affects veneer appearance.
This veneer patching machine adopts moulds and upper & lower punches. It automatically completes the whole patching procedure, filling the gap in the industry. The machine is suitable for repairing various types of wood veneer. It features simple operation, fast patching speed, labor saving, lower production cost and improved veneer quality grade.
