Product Description

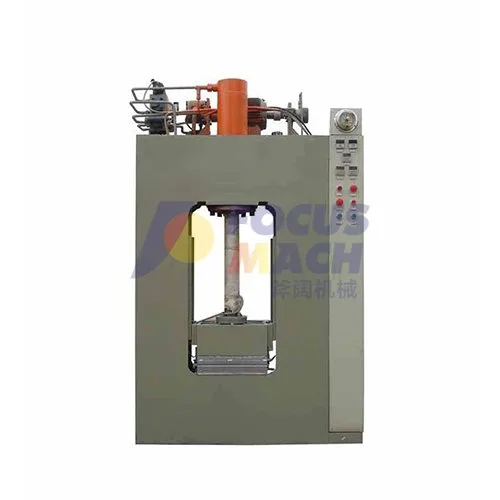

This chair forming machine is used for bending all kinds of plywood, MDF and HDF panels. Widely applied for office chairs, writing desks, sofa armrests, bed slats, panel furniture, bed headboards, cabinet door panels, musical instruments and other plywood components.
For solid wood bending, it is only suitable for workpieces with large curvature radius, such as chair rings, chair legs, bed headboards or musical instrument parts.
Main Technical Specifications
| Item | GJQ1206-Y60(80)-JY | GJQ1508-Y80(100)-JY | GJQ2010-Y100(120)-JY | GJQ2512-Y120(150)-JY |
|---|---|---|---|---|
| Model No. | GJQ1206-Y60(80)-JY | GJQ1508-Y80(100)-JY | GJQ2010-Y100(120)-JY | GJQ2512-Y120(150)-JY |
| Power Supply | AC 380V,50Hz, 3-phase 5-wire | AC 380V,50Hz, 3-phase 5-wire | AC 380V,50Hz, 3-phase 5-wire | AC 380V,50Hz, 3-phase 5-wire |
| HF Power | 10KW-50KW | 10KW-50KW | 10KW-50KW | 10KW-50KW |
| Frequency | 6.78MHz-27.12MHz | 6.78MHz-27.12MHz | 6.78MHz-27.12MHz | 6.78MHz-27.12MHz |
| Working Table Size | 1200*600mm | 1500*800mm | 2000*1000mm | 2500*1250mm |
| Max. Pressure | 60T-80T | 80T-100T | 100T-120T | 120T-150T |
| Output Mode | Single / Double Output | Single / Double Output | Single / Double Output | Single / Double Output |
Functions
- High-frequency heating, uniform heating, fast glue curing.
- Low cost for wooden moulds, low heat loss and easy mould replacement.
- High forming rate, finished parts are not easy to deform.
- Two workstations in one set: one for production, one standby, working alternately.
- Eco-friendly production process.
