Plywood Machinery

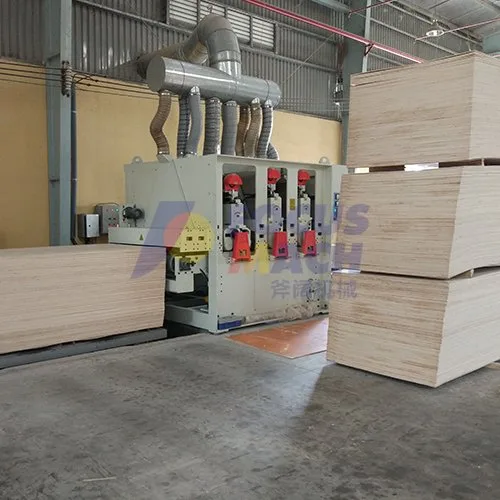

Three grinding heads are operating
Time: 2026-10-16 15:49
Description:
Time: 2026-10-16 15:49
Description:
Jasonqiao@sdfocusmachinery.comProduct Details
| Item | BSG5313R-R-R | BSG5213R-R |
|---|---|---|
| Working Width | ≤1300mm | ≤1300mm |
| Working Thickness | 0–100mm | 0–100mm |
| Working Length | ≥750mm | ≥1000mm |
| Working Precision | ±0.08mm | ±0.1mm |
| Sanding Belt Speed | 22.5m/s | 22.5m/s |
| Sanding Belt Size L×W | 2620*1320mm | 2620*1320mm |
| Auto Feeding Speed | 15–50m/min (adjustable) | 5–30m/min (adjustable) |
| Sanding Belt Motor | 55KW+45KW+37KW (optional) | 55KW+37KW (optional) |
| Total Installed Power | 150KW | 108KW |
| Working Air Pressure | 0.55Mpa | 0.5–0.8Mpa |
| Air Consumption | 1.2cbm/min | 1cbm/min |
| Dust Collection Air Speed | 6–45m/s | 5–30m/s |
| Dust Collection Volume | 28000cbm/h | 18000cbm/h |
| Overall Dimension | 310028452500mm | 290028202500mm |
| Net Weight | 12000kg | 10000kg |
