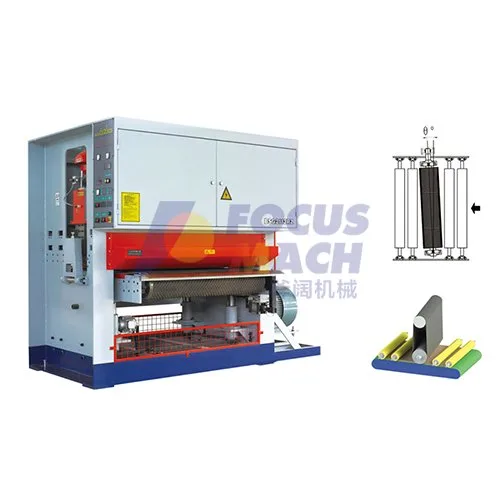

Single-sided calibrating sanding machine
Time: 2026-10-16 15:52
Description:
Time: 2026-10-16 15:52
Description:
Jasonqiao@sdfocusmachinery.comProduct Details
Main Features
- The whole machine adopts advanced foreign technology and high-quality imported components. It delivers stable sanding quality and high precision. The thickness tolerance of workpieces after double-sided sanding reaches ±0.1 mm.
- The machine frame is welded with large cross-section cold-bent rectangular profiles, featuring high rigidity, good shock absorption and anti-deformation performance.
- The feeding speed is controlled by frequency conversion, simple and reliable.
- The whole frame is profile-welded. Special shock-absorbing materials are filled inside profiles to guarantee machine stability.
- Adopts high-precision lifting structure.
- Key components are manufactured with advanced international welding technology.
- Sanding precision: ±0.135 mm.
Technical Specifications
| Item | Parameter |
|---|---|
| Machine Name | Single-side Double-head Calibrating Sander |
| Model | BSG1213R-R |
| Max Sanding Width | 40–1300mm |
| Sanding Thickness Range | 2.5–80mm |
| Minimum Sanding Length | ≥780mm |
| Sanding Belt Linear Speed | 25m/s |
| Sanding Belt Size | 1300x2620mm |
| Sanding Belt Motor Power | 55Kw + 45Kw |
| Platform Lifting Motor Power | 0.75Kw |
| Brush Roller Motor Power | 0.75Kw |
| Panel Feeding Speed | 20–40m/min |
| Conveyor Motor Power | 11Kw |
| Conveyor Reducer Motor Power | 7.5Kw |
| Compressed Air Working Pressure | 0.6–0.8Mpa |
| Dust Extraction Airflow | 15000m³/h |
| Total Motor Power | 109Kw |
| Machine Overall Dimension (L×W×H) | 3030x2900x2440mm |
| Net Weight | 8100Kgs |
| First Roller | Steel roller Φ300mm, 80 shore hardness |
| Second Roller | Steel roller Φ400mm, 80 shore hardness A |
