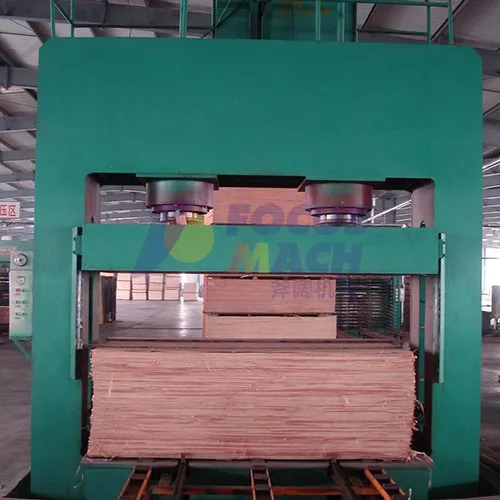

Plywood Cold Press / Pre-press
Brief Introduction & Functions
- The main frame is welded and formed by one-time blanking with national standard steel plate. Reasonable structure with strictly calculated stress points and excellent rigidity.
- Adopts domestic high-quality oil cylinders installed at the bottom. Core parts are premium hydraulic components for convenient spare part replacement.
- Easy maintenance and simple operation.
- Customizable to meet customers’ specification requirements.
- This machine is key equipment for pre-pressing profiles such as plywood and laminated plywood.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | BY814X8/4-IIz |
| Rated Pressure | 4000 kN (400 tons) |
| Board Feeding Direction | Horizontal |
| Max Opening Stroke | 1500mm |
| Working Platform Size | 1380mm × 2700mm |
| Main Plunger Cylinder Diameter | Φ320mm (Wuxi) |
| Quantity of Main Plunger Cylinders | 2 Pcs |
| Side Auxiliary Cylinder Diameter | Φ60mm (Wuxi) |
| Quantity of Side Auxiliary Cylinders | 2 Pcs |
| Allowable Pressure of Plunger Cylinders | ≤26Mpa |
| Stroke of Plunger Cylinders | 1000mm |
| Plunger Cylinder Position | Top-mounted |
| Unit Board Pressing Pressure | 12Kgf/cm² |
| Board Size | 2560mm × 1280mm |
| Allowable Working Pressure | ≤26Mpa |
| Machine Net Weight | 17000Kgs |
| Control Method | Automatic pump station |
| Thickness of Upper & Lower Crossbeams | 900mm |
| Steel Plate Thickness (Crossbeam) | 35mm |
| Moving Crossbeam Thickness | 400mm |
| Steel Plate Thickness (Moving Beam) | 20mm |
| Chain & Roller Conveying Device | Yes |
| Frame Structure | Composite frame for container loading |
