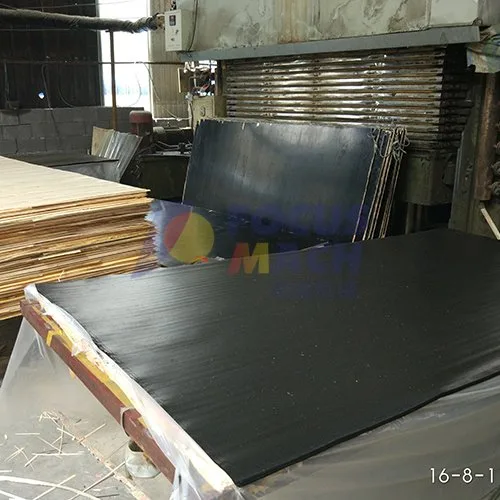

Hot press for formwork plywood
Time: 2026-10-16 16:49
Description:
Time: 2026-10-16 16:49
Description:
Jasonqiao@sdfocusmachinery.comProduct Details
Plywood Hot Press Machine
Brief Instructions
- The machine adopts a combined frame structure, welded and processed with national standard steel. It has a reasonable structure with strictly calculated stress points, excellent rigidity, large bearing pressure, good anti-deformation performance and high stability.
- Microcomputer control, high automation level, high reliability, easy adjustment and long service life.
- The hydraulic control system uses high-quality hydraulic components, which can build pressure quickly and accurately with high working efficiency.
- A full range of specifications and models; custom design can be carried out according to customer requirements.
- This machine is the main equipment for producing plywood and laminated plywood.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | BY214×8/6-10IId |
| Total Rated Pressure | 5000KN / 500Tons |
| Plywood Feeding Direction | Horizontal |
| Number of Layers | 10 layers |
| Distance Between Hot Plates | 90mm |
| Quantity of Hot Plates | 11Pcs |
| Hot Plate Dimension | 2700×1370×52 mm |
| Cylinder Quantity | 2Pcs |
| Cylinder Diameter | Φ400 mm, Made in Wuxi |
| Cylinder Stroke | 1000mm |
| Sealing Working Pressure | ≤25 Mpa |
| No-load Closing Time | 11S |
| Low-pressure Pump Flow | 2×355L/min |
| Allowable Pressure (Low-pressure Circuit) | ≤5Mpa |
| Low-pressure Pump Motor Power | 11Kw ×2 |
| High-pressure Pump Flow | Approx. 35 L/min |
| High-pressure Pump Motor Power | 7.5 kw |
| Unit Board Pressing Pressure | 21Kgf/cm² |
| Board Size | 2560×1280mm |
| Machine Overall Dimension | 4000×1370×3600 mm |
